Description
Kindly Note:
1.Please make sure if your Mac has one of the following two kinds of port: mini DP port and Thunderbolt 1/2 port.
2.Only one of the 3 outputs could be used at a time, you can NOT use all of them simultaneously.
3. DO NOT compatible with Thunderbolt 3.
Specification:
Input Signal: Mini Display Port 1.1a.
Output Video: HDMI/DVI/VGA.
Input: Mini DisplayPort Male 20pin.
Output: HDMI Female Type A Female 19pin, DVI Female (24+1), VGA Female 15Pin.
Vertical Frequency Range:50/60Hz.
Video Amplifier Bandwidth:2.25Gbps/225MHz.
HDMI/DVI/VGA:480i/480p,576p,720p,1080i/1080p.
External Power Supply: No external power needed.
Power consumption (Max):700mW.

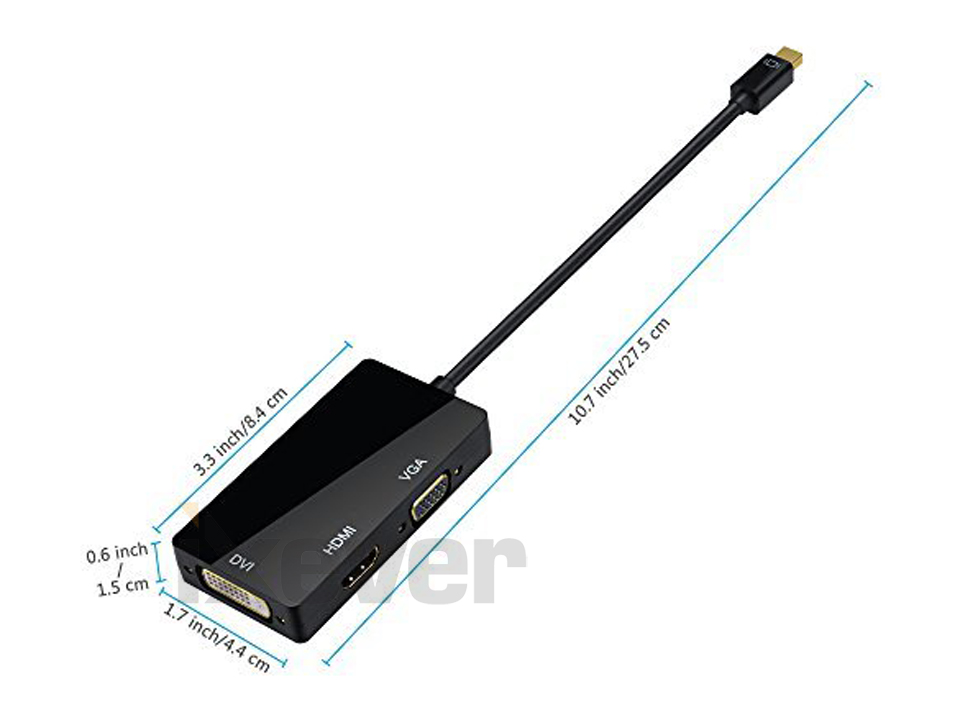

The Length of the cable:28cm.
Color: Black.
Package weight: 1.9 oz/54g.
Compatible models:
Mac Book Air, Mac Book Pro, iMac, and Mac mini with thunderbolt ports since 2011 are all supported.
Mac Book Air, Mac Book Pro, iMac, and Mac mini or PC with mini display port are also supported.
Microsoft Surface Book Surface Pro 3/4.
Google Chromebook.
How to use:
The product is easily and conveniently use, with three output ports: DVI VGA HDMI and a Mini Display Port. And you
can use one of them at a time as your demand, when you want to use the DVI output; you just need to connect the
DVI devices by a DVI cable. And when you want to use the HDMI output, you just need to connect the HDMI devices by
a HDMI cable. When you want to use the VGA output, you just need to connect the VGA devices by a VGA cable. And,
the Mini Display Port needs to connect with Mac Book, Mac Book Pro, or Mac Book Air.
Package content:
1 x Thunderbolt Mini DP DisplayPort to DVI VGA HDMI Adapter 3in1 Cable 1080p.
