Description
Description:

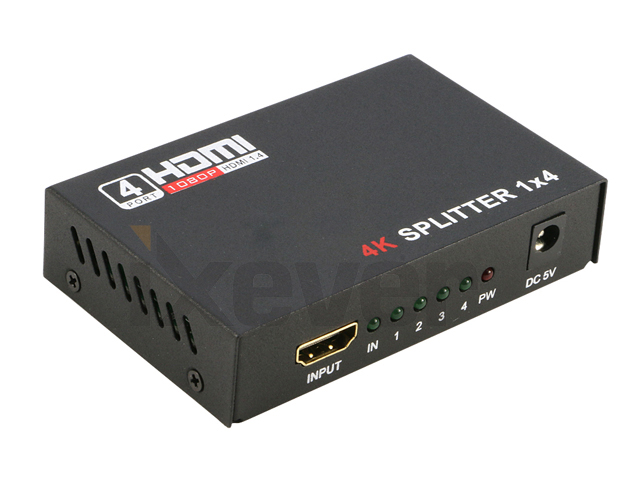

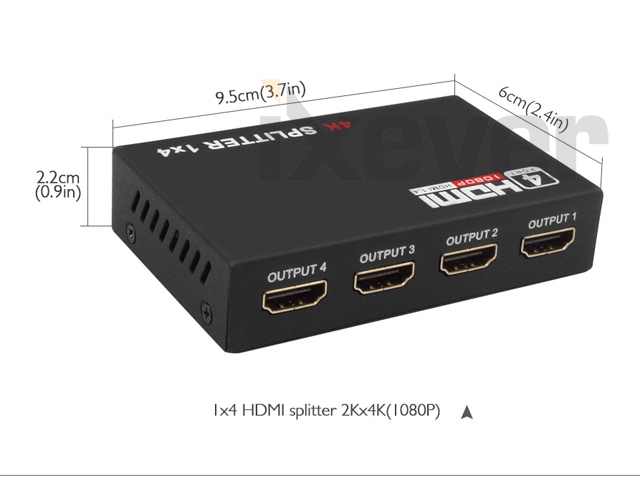

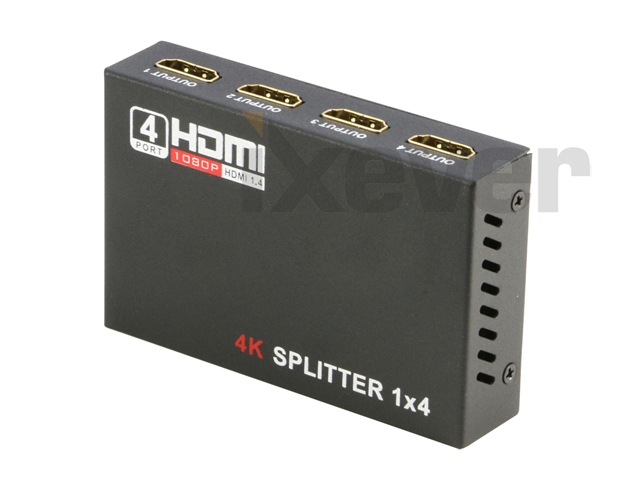

4K HDMI splitter 1X4 distributes 1 HDMI source to 4 HDMI displays simultaneously and 3D Compatible.
It offers HD solutions for HDTV retail and show site, HDTV, STB, DVD.
Suitable for Projector factory, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Features:
1. 1x HDMI 1.4V signal input split to 4x HDMI 1.4V sink devices.
2. Support 3D and CEC.
3. Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3 /DSD/HD(HBR
4. Support deep color 30bit, 36bit, blue-ray 24/50/60fs/XvYCc.
5. Support Signal Retiming.
6. Compatible with Playstation, Xbox, Wii Consoles, Blu-Ray, satellite boxes, TV Box, laptops, computer.
Specifications:
Input Video Signal:0.501.0 volts p-p
Input DDC Signal:5 volts p-p(TTL)
Max Single Link Range: 4K X 2K 30HZ
Output Video:HDMI 1.4a+HDCP1.0/1.1/1.2/1.3
Resolutions DTV/HDTV:576i/576P/720p/1080i/1080p/4K
HDMI Version:HDMI 1.4a
Power supply:DC 5V
Digital audio format:DTS-HD/Dolby-true-HD/LPCM 7.1/ DTS/Dolby-AC3/DSD.
Instruction:

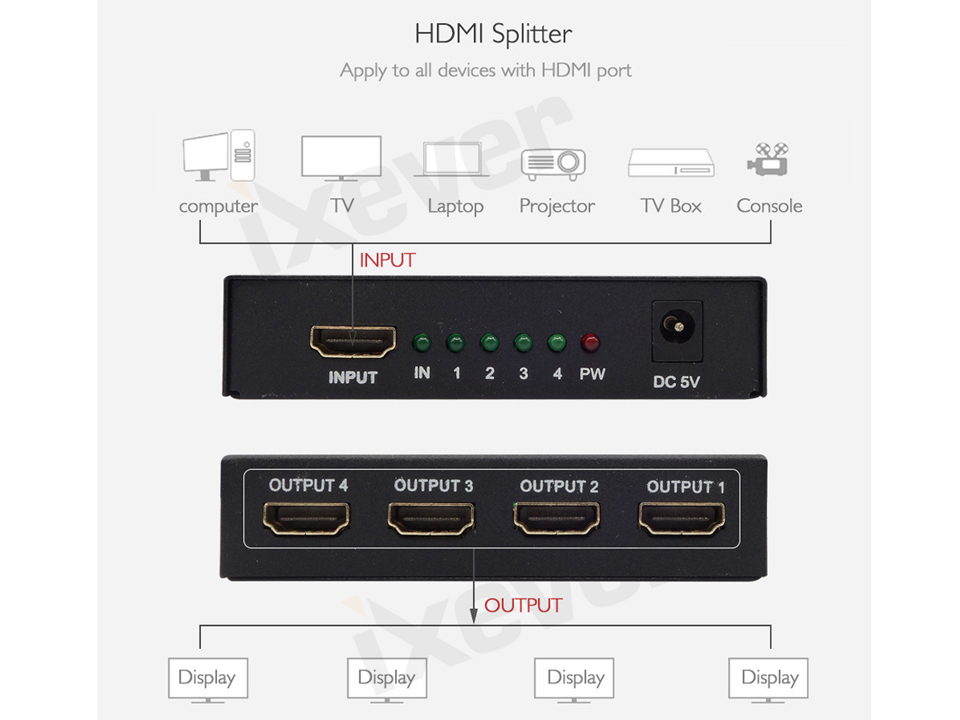

1.Connect the input source and output displays to the HDMI Splitter .

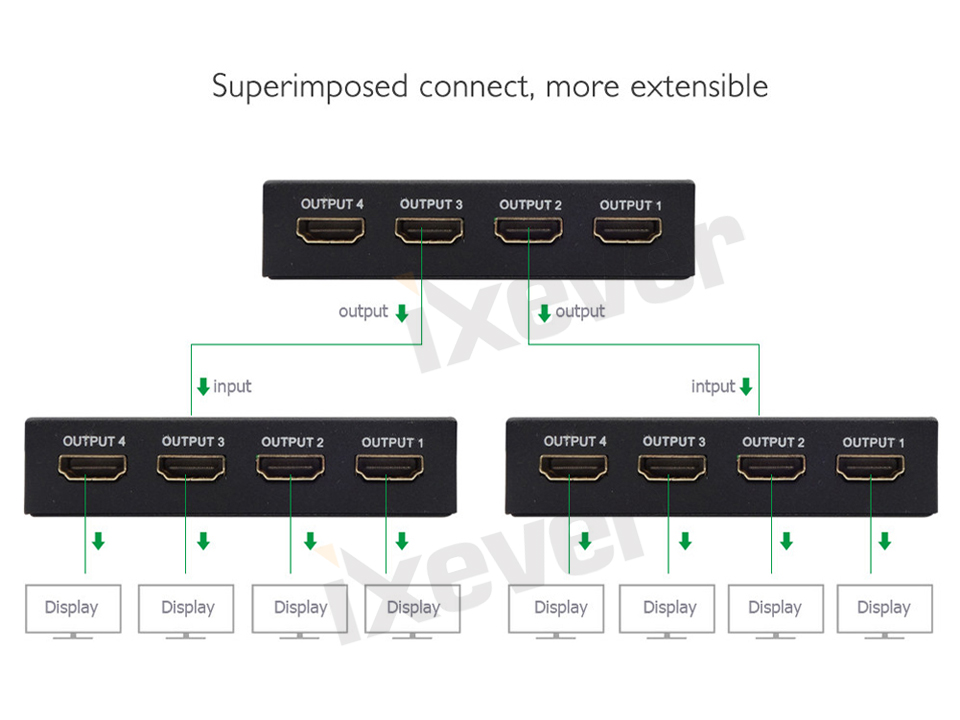

Please refer to the Connection Image.
2.Connect the DC 5V power supply to the splitter.
Please kindly note that power supply with higher voltage may damage the splitter.
3.When input source and output displays are connected and turned on, the corresponding LED will light.

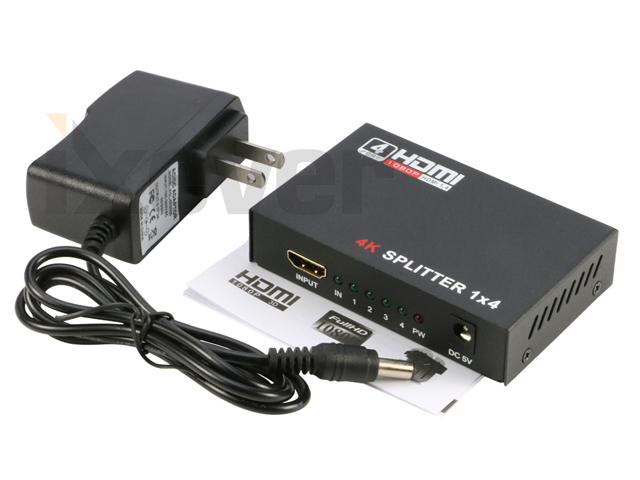

Package included:
1x 1 in 4 out HDMI splitter adapter.
1x AC Power Adapter.
1x User Manual.
